Supcold Cryo chillers
We are Authorized Dealer for Supcold Cryo chillers are the very high quality units to the application of Optical Coating, Web coating, Semi conductors, Optical Networking and Flat panel Displays . Coolteq having many ranges of units with the Capacity from 50K to 500k . For example one Coolteq 500k is equivalent to two 220k pump speed . The Supcold Cryochiller has high technology content, Unique manufacturing process, so that it is stable in quality and very famous in vacuum area.
Key Advantages of Supcold :
- Low running and power cost.
- Low compressor temperature.
- High cooling Speed.
- No need to use water chiller.
- No oil block problem.
PARAMET

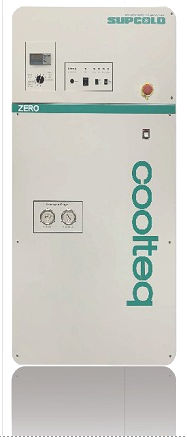

Coolteq-50K Specification
| Specification | Coolteq 50K |
|---|---|
| Maximum Load | 1000W |
| Pumping Speed | 50,000L/s |
| Cryosurface Area | 0.5m2 |
| GWP | 3100 |
| CO2 Emmision | 16.5t |
| Weight | 110Kg |
| Power Supply | 380~460V 3PH 50/60Hz |
| Compressor Power | 4HP |
| Maximum Current @ 380V | 8.5A |
| Water Requirement | 10L/min @ 25°C |
| Size | 580x460x1320(mm) |
| Interface | AMP 37 |

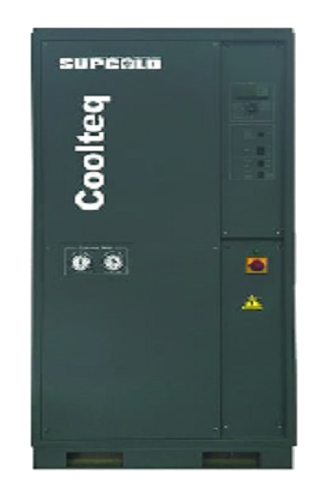

Coolteq-500K Specification
| Specification | Coolteq-500K |
|---|---|
| Maximum Load | 6400W |
| Pumping Speed | 500,000L/s |
| Cryosurface Area | 5m2 |
| GWP | 3120 |
| CO2 Emission | 41.2t |
| Weight | 505kg |
| Power Supply | 380-460V 3PH 50/60Hz |
| Compressor Power | 25Hp |
| Maximum Current at 380V/20DV | 62A |
| Water Requirement | 55L/min@25* C |
| Size | 960x930x1800(mm) |
| Singal/Dual Circuit | Yes/Yes |
| Interface | Amp37/Ethernet(Option) |
